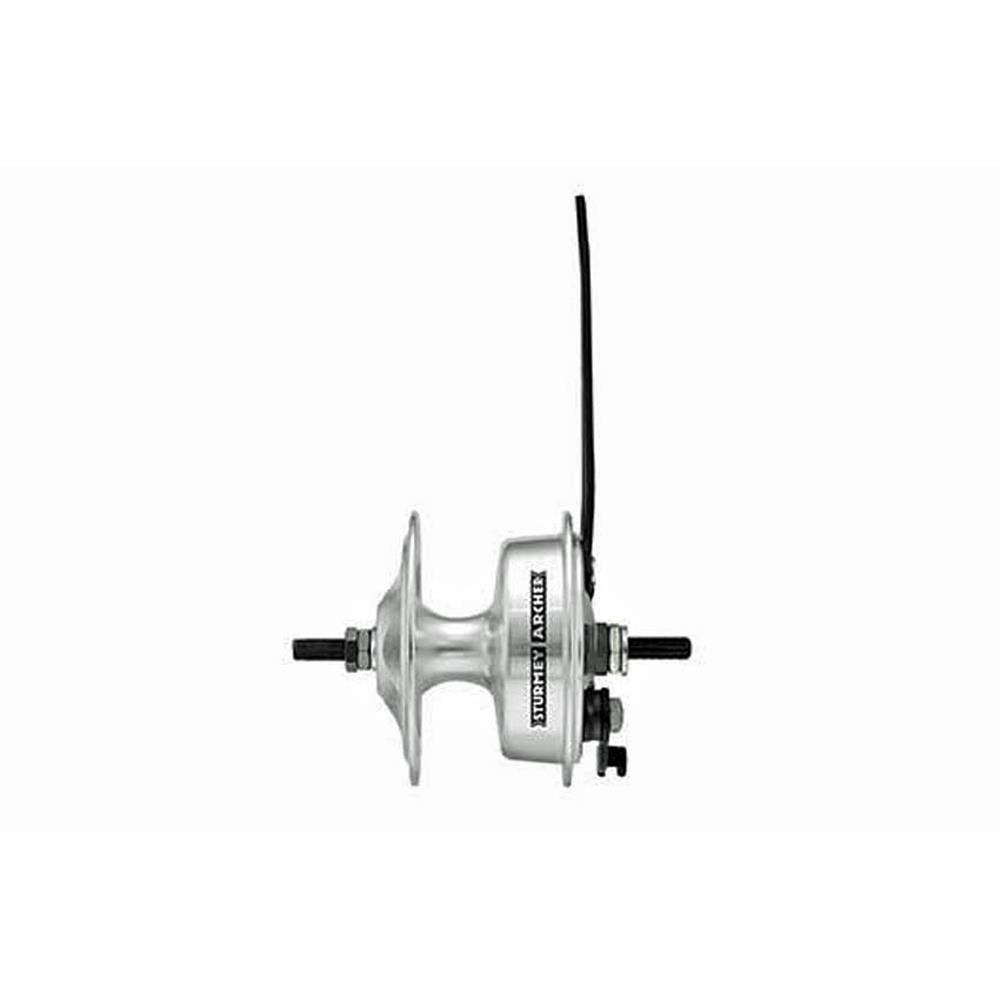

Sturmey Archer X-FD Front Drum Brake Hub 70mm 36H
Sturmey Archer X-FD 70mm Drum Brake (36H) Front Hub.
70mm Front Drum Brake Hub featuring an A356 Aluminium hub shell with 36 spoke holes and sealed cartridge bearings. Includes lock nuts, Front brake cable, Pinch Bolt and 17.5mm Brake Arm clip. 9mm axle diameter, 136mm axle length. Over locknut dimension is 100mm. Compatible with 13/14G spokes. Natural alloy finish. Hub weighs 770g approx.
Specifications:
Hub Shell Material: A356 Aluminum
Bearing Type: Sealed Cartridge
Axle Diameter: 9mm
Axle Length: 136mm
Over Locknut Dimension: 100mm
Spoke Holes: 36
Pitch Circle Diameter: 89.8mm
Center to Flange Right: 29.0mm
Center to Flange Left: 29.0mm
Flange Width: 56mm
Spoke Compatibility: 13g or 14g
Weight: 770g
MPN: X-FD
