Sturmey Archer Hub 3 Speed 36H Silver Cruiser Disc Brake
Sturmey Archer Rear Hub (Alu)

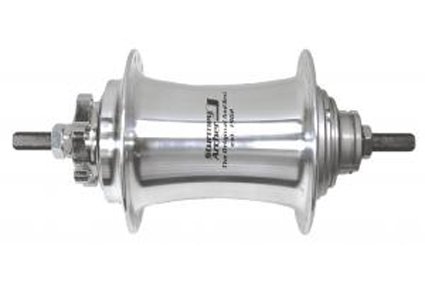

SX-RK3 3-Speed Internal Gear Freewheel Hub with Disc Brake 36H Silver
Classic 3 speed gear ratio of 177%
Extra wide Cruiser hub will allow the use of a rear (disc) brake lever in a frame adapted only for a coaster brake
Hub Shell Material 6061 Aluminum
Axle Diameter 13/32 Slotted
Axle Length 215mm
Over Locknut Dimension 170mm
Right Axle Protrusion Length 23mm
Left Axle Protrusion Length 22mm
Spoke Holes 36
Pitch Circle Diameter 89.8mm
Center to Flange Right 52.1mm
Center to Flange Left 43.5mm
Flange Width 91mm
Spoke Compatibility 13g or 14g
Sprocket Teeth 13T through 22T
Chain Line: 1/8 Flat 70.9mm
Chain Line: 1/8 Dished 69.2mm, 72.6mm
Chain Line: 3/32 Flat 70.6mm, 71.2mm
Chain Line: 3/32 Dished 68.8mm, 73mm
Indicator Chain HSA315 Mark 3
Weight 1400
