Clarks E-Cargo Hydraulic Disc Brake set 180mm

Clarks 2 Piston Cargo Bike Brake system is a specialised brake mechanism designed for cargo bikes. This system, which features a single lever that connects to a junction box to activate two callipers simultaneously, is an innovative approach to handling the increased weight and distribution challenges presented by cargo bikes.

Cargo bikes, require more robust braking systems to ensure safety and effective stopping power. A single lever controlling two callipers through a junction box provides balanced and powerful braking on both wheels, enhancing stability and control when the bike is loaded.

Each set is supplied with 1 front brake that activates 2 callipers and 1 rear brake that will activate only 1 calliper or visa versa, 3 rotors and fixing bolts. To suit cargo bikes configuration 2 x 1 we also offer the cargo brake with a standard 2 calliper configuration 1 front 1 rear calliper with extended hose lengths. Our cargo brake also features an intergraded parking brake, to secure the bike when stationary.

Technical Specifications

• Powerful 2 piston, Cargo hydraulic brake system
• Parking brake on front and rear levers
• Mineral oil
• Available in 3 wheel and 2 wheel configurations
• With shut off for E-bikes
• High quality anodised finish
• Complies with and exceeds ISO 4210 and EN 15194 regulations.

Configurations

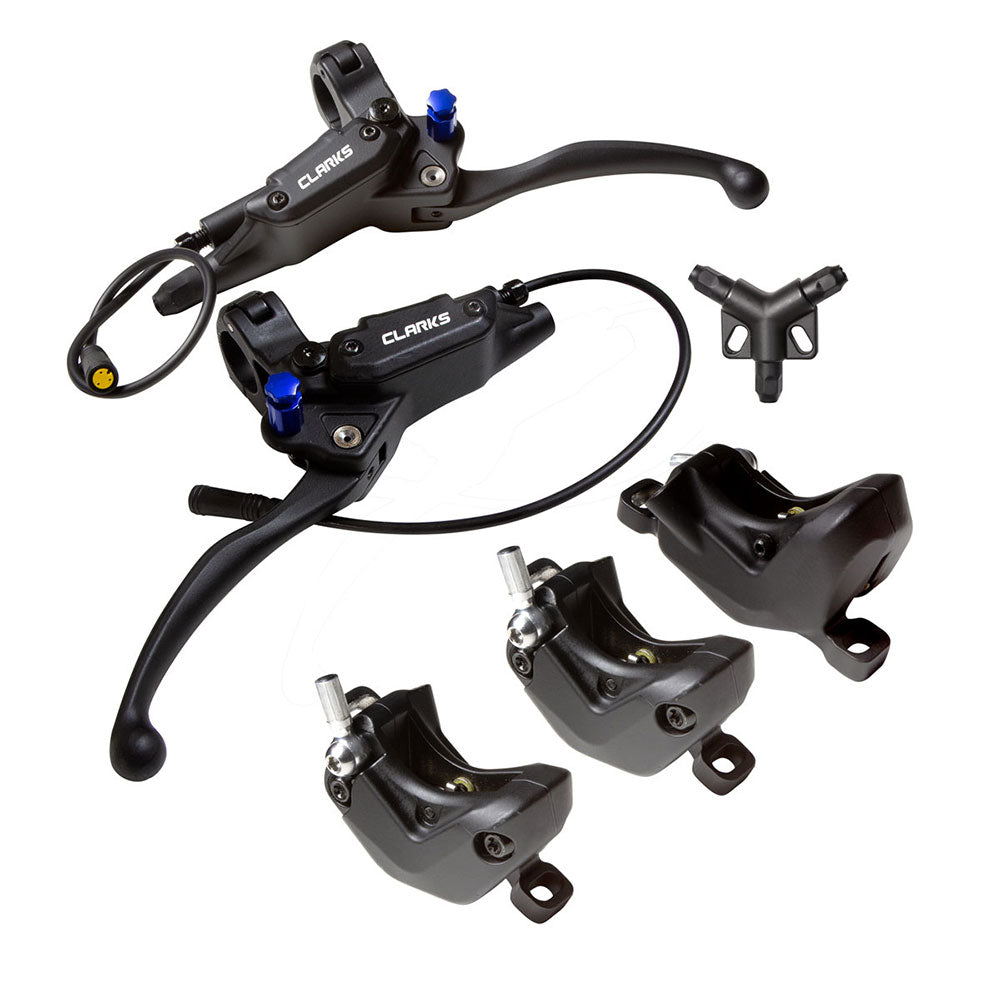

• 2+1 Configuration: 1xFront 180mm & 2xRear 180mm + Rotors + Shut-off

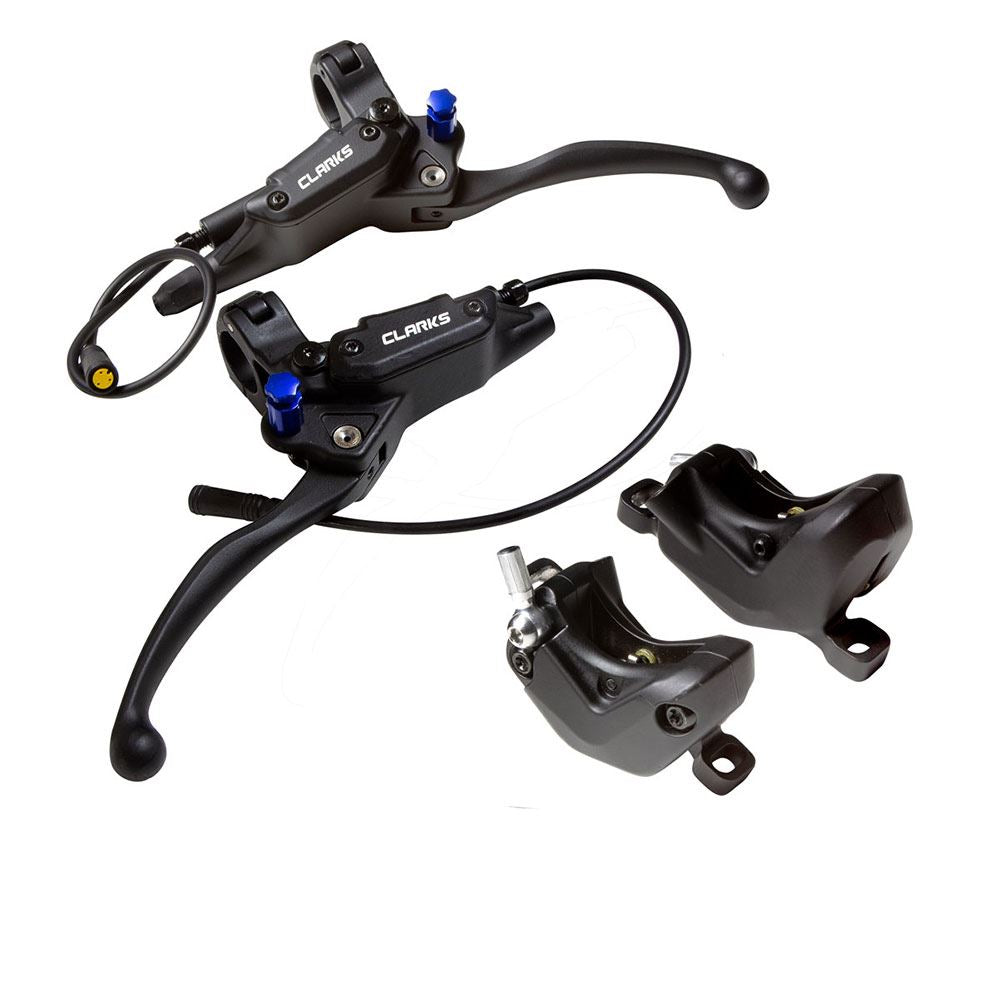

• 1+1 Configuration: 1xFront 180mm & 1xRear 180mm + Rotors + Shut-off
